產品介紹

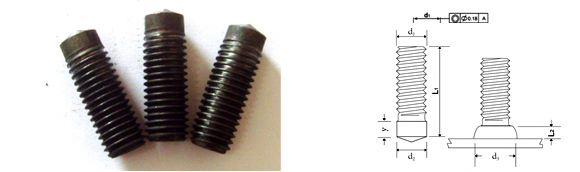

碳鋼拉弧焊釘
技術參數
d1 M6 M8 M10 M12 M16 M20 M24 d2 5.35 7.19 9.03 10.86 14.7 18.38 22.2 d31) 8.5 10 12.5 15.5 19.5 24.5 28 h11) 2.5 2.5 3 4 5 6 7 ymax 9 9 9.5 10 13.5 15.5 17 l22) 20-5 20-60 25-70 30-80 30-200 50-200 50-300 -
產品分類1
碳鋼拉弧焊釘
技術參數
| d1 | M6 | M8 | M10 | M12 | M16 | M20 | M24 |
| d2 | 5.35 | 7.19 | 9.03 | 10.86 | 14.7 | 18.38 | 22.2 |
| d31) | 8.5 | 10 | 12.5 | 15.5 | 19.5 | 24.5 | 28 |
| h11) | 2.5 | 2.5 | 3 | 4 | 5 | 6 | 7 |
| ymax | 9 | 9 | 9.5 | 10 | 13.5 | 15.5 | 17 |
| l22) | 20-5 | 20-60 | 25-70 | 30-80 | 30-200 | 50-200 | 50-300 |
